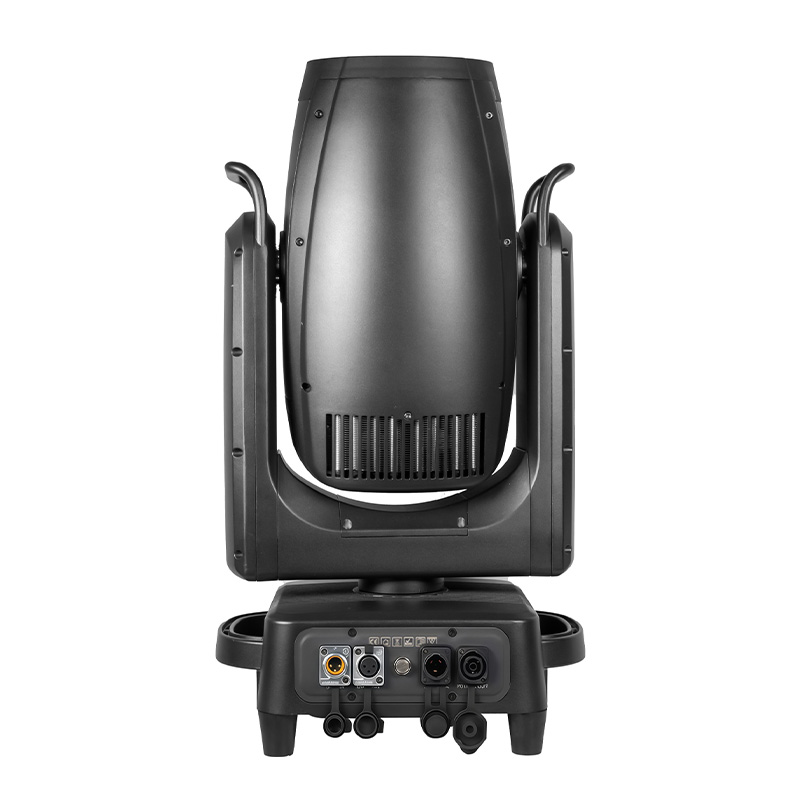

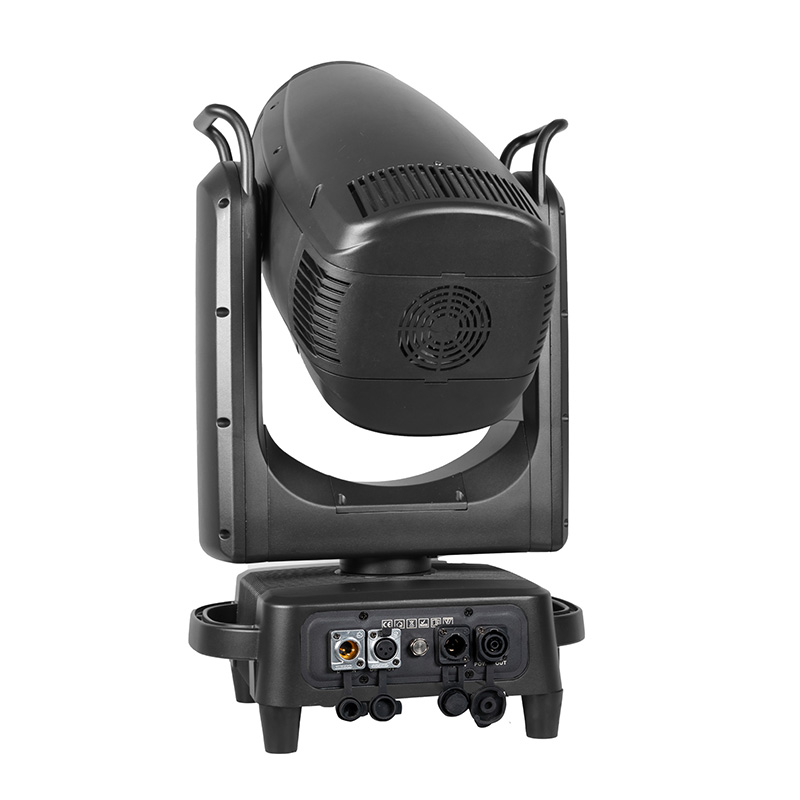

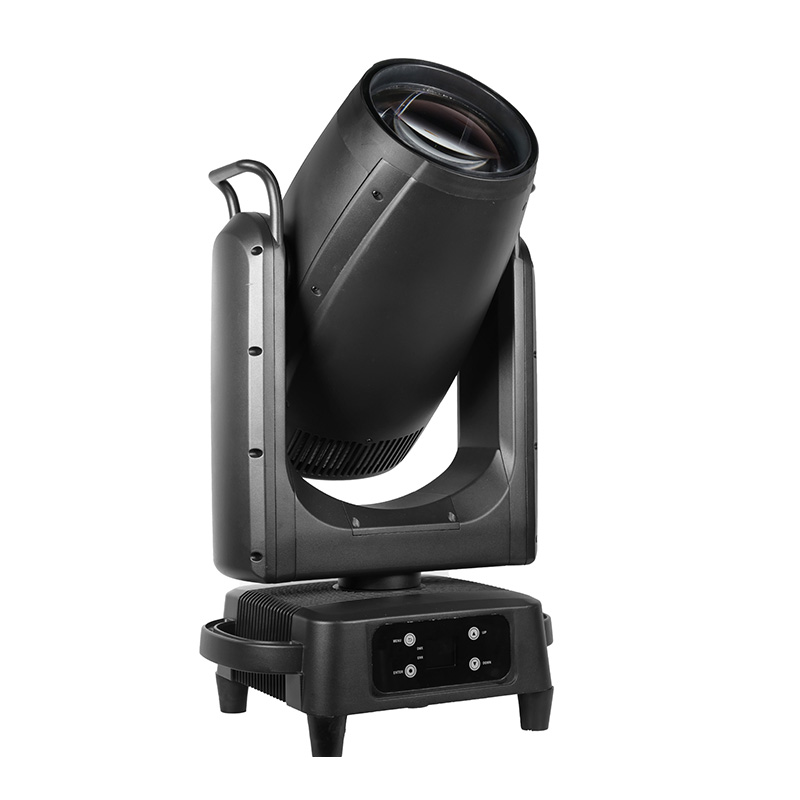

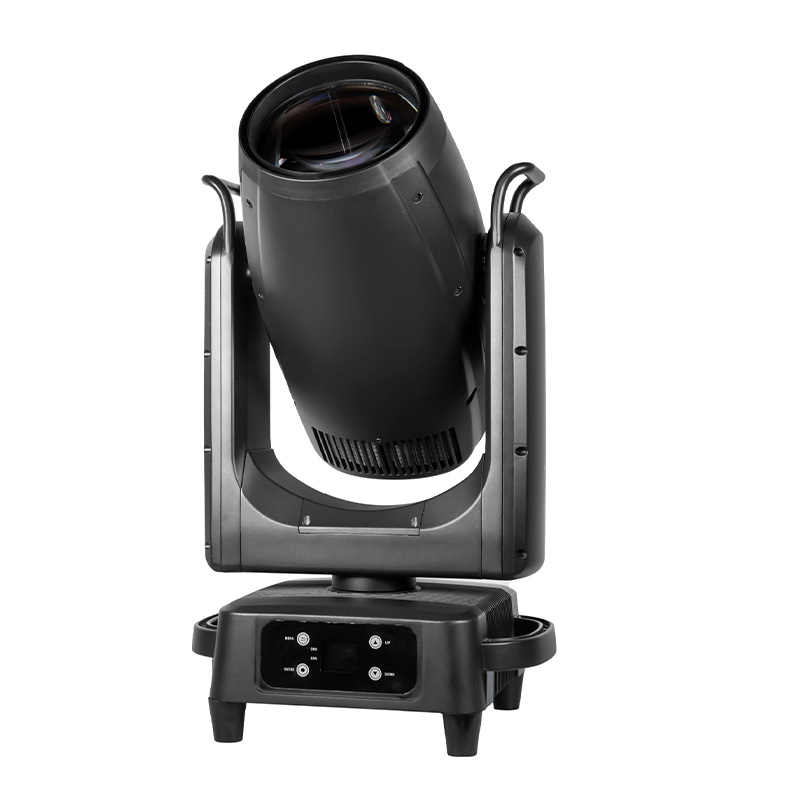

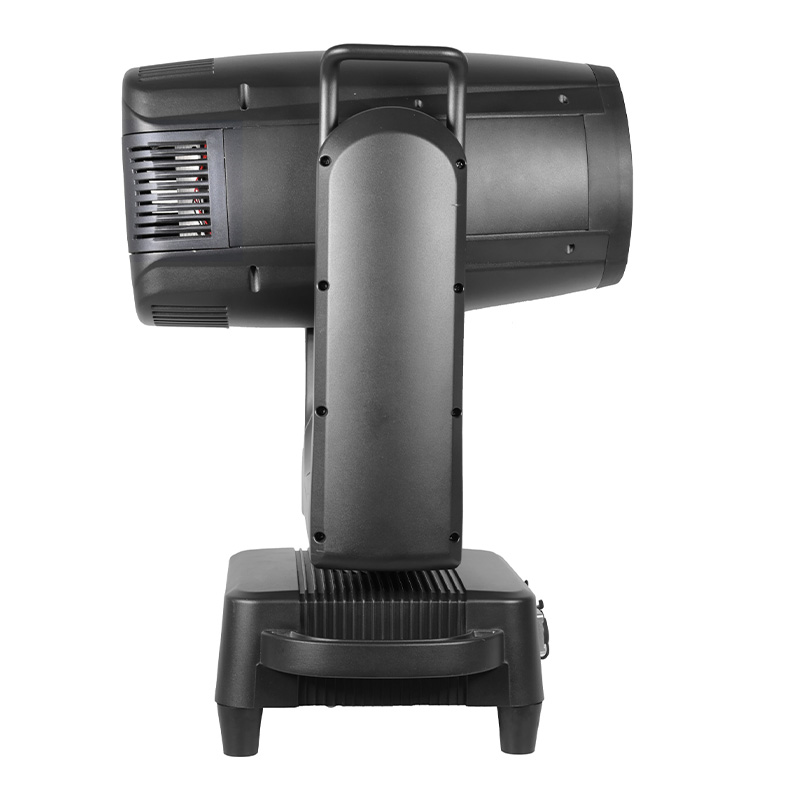

NOWLIT Outdoor Waterproof 420W Beam Moving Head Light

IP66 420W Beam Moving Head Light

NOWLIT 420W Waterproof Beam Moving Head delivers a sharp 3.5° beam and 193,000 lux at 15 m.IP66 housing ensures reliable performance for outdoor stages and events.

  • Brand model :

    QR-WB420
  • Input voltage :

    AC100V-240V, 50/60Hz
  • Light source :

    420W Ushio bulb
  • Color wheel :

    14+1/Rainbow
  • Product size :

    36×25×65 cm
  • Net weight :

    19.5 kg
  • Protection level :

    IP66
  • Channel mode :

    16CH
Inquiry Now

Function Description


NOWLIT Waterproof 420W Beam Moving Head Light is a high-brightness professional stage lighting fixture designed for stage performances,outdoor shows,and small to mid-scale events.Powered by a 420W discharge lamp,it features a narrow 3.5°beam angle combined with a 160mm large-diameter front lens,delivering up to 193,000 lux at 15 meters.The beam is sharp,concentrated,and highly penetrating,making it especially suitable for long-distance projection and outdoor stage applications.

The fixture adopts an IP66-rated waterproof structure with multi-layer sealing on key components and a high-strength metal housing,effectively resisting rain,dust,and moisture.This ensures long-term stable operation in outdoor and challenging environments,making it a reliable waterproof beam lighting solution for outdoor stages, cultural tourism performances,and professional event projects.

Technical parameters


Light Source System

  • Light source: 420W Ushio bulb
  • Color temperature: 7000K

Optical System

  • Beam angle: 2.8°,with full beam and sharp edges
  • Lens diameter: 160 mm
  • Lux: 193,000 lux @ 15 m

Color System

  • 1 independent color wheel with 14 colors + open, featuring both step and linear color changing with half-color effects
  • Rainbow effect: Dynamic multi-color rainbow effect

Gobo system

  • Fixed gobo wheel: 13 metal gobos + open, with variable speed shake

Effect

  • Prism : 8-facet prism, 8+16-facet prism, bi-directional rotation with combinable dual-prism effects
  • Dimming: 0–100% linear dimming
  • Strobe: Multiple-speed electronic strobe effects
  • Frost : 1 independent frost filter for wash and color-mixing effects

Pan&Tilt

  • Pan/Tilt Movement:540°/270°
  • Automatically return to its original position and perform 16-bit precision fine-tuning
  • Pan and Tilt adopt a precise photoelectric coupling positioning system

Electrical & Interface

  • Rated power: 500W
  • Input voltage: AC100–240V,50/60Hz
  • Signal interface: 3-pin XLR DMX input/output

Control & Programming

  • DMX channels: 16 CH
  • Control protocol: DMX512 with RDM support
  • Display: LCD touch screen, 180° reversible display
  • Energy saving mode: Automatic sleep mode when signal is lost
  • Software upgrade: Upgradeable via DMX signal cable
  • Cooling system: High-efficiency cooling system with intelligent variable-speed fans and built-in temperature sensors

Fixture Structure

  • Housing material: Die-cast aluminum with aerospace-grade magnesium alloy
  • Operating temperature: -20°C to 40°C
  • Protection level: IP66

Size & Weight

  • Product size: 360×250×650 mm (L×W×H)
  • Net weight: 19.5 kg
