Casa Beam Lights

380W High Brightness Osram Moving Beam Light

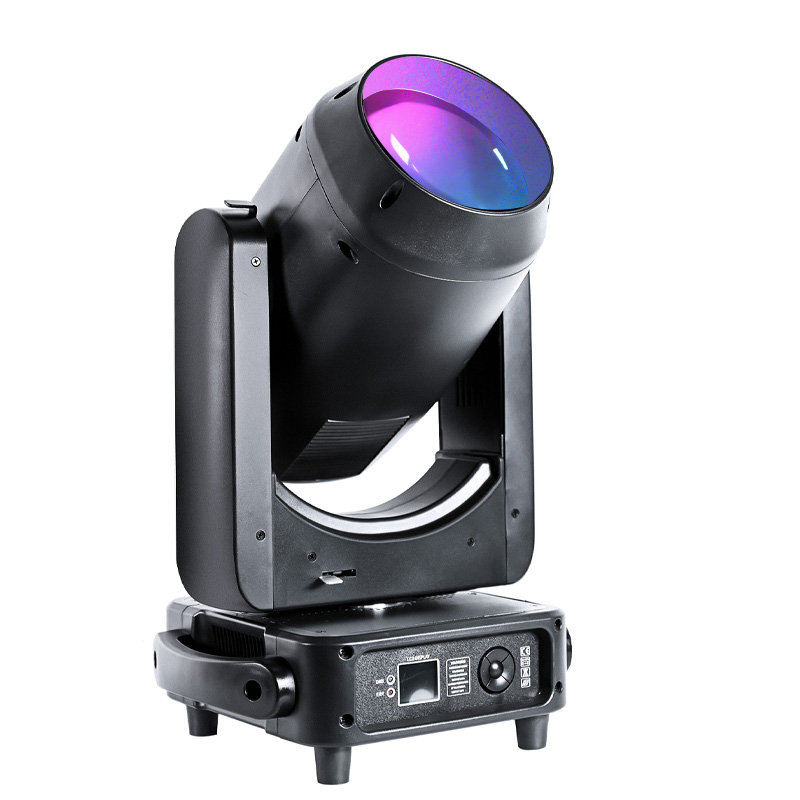

Professional 380W Stage Beam Moving Head with High Brightness Osram 371 Source

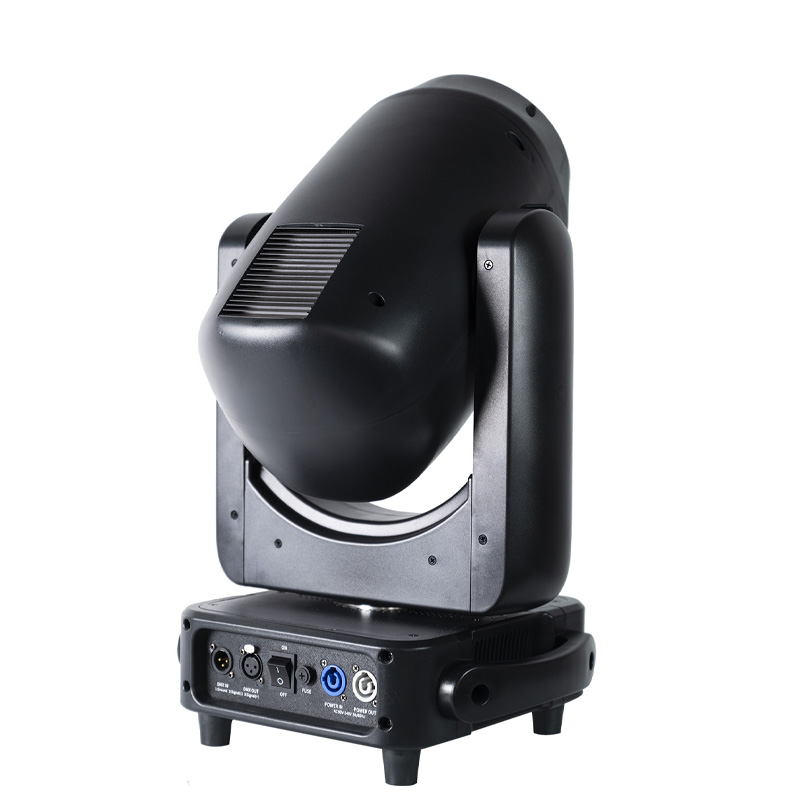

380W Osram Beam Moving Head for Small Medium Stages & Nightclub

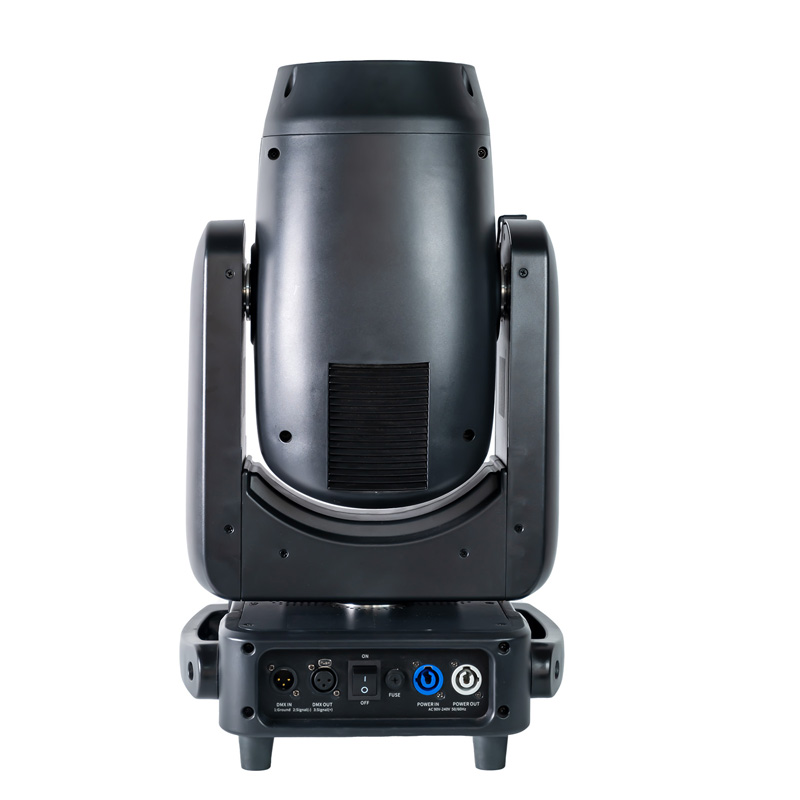

Professional Stage Lighting Equipment for Events & Banquet Halls

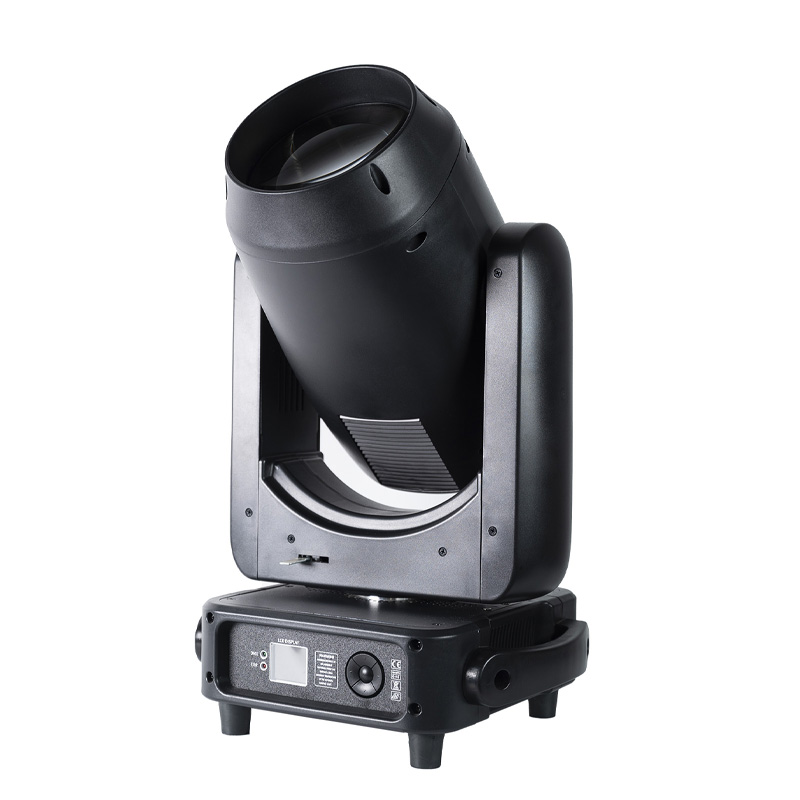

Osram 371 Beam Light Supplier for Stage Lighting Solutions

380W High Brightness Osram Moving Beam Light

380W Osram Beam Light delivers 193,000 lux at 15m via OSRAM 371 and 166mm lens,with 14 colors,17 gobos,dual rotating prisms,strobe and dimming.

  • Brand model :

    QR-B380A
  • Input voltage :

    AC100V-240V, 50/60Hz
  • Light source :

    500W
  • Color wheel :

    8+1/CMY/CTO
  • Product size :

    33*27*57CM(L*W*H)
  • Net weight :

    16.5KG
  • Protection level :

    IP20
Inquiry Now



Function Description


380W Osram Beam Light is a professional stage lighting fixture that combines high-brightness output with rich dynamic effects.It utilizes an OSRAM 371 light source paired with 166mm Lens delivering an impressive illumination intensity of up to 193,000 Lux at a distance of 15 meters.This ensures powerful,concentrated beams and excellent long-throw projection capabilities.

QR-B380 features a professional effects system,offering versatile creative expression: a 14-color independent color wheel supports stepped and linear color changes with smooth half-color mixing;17 metal gobos +white light, all with adjustable-speed shaking;built-in 8-facet and 24-facet prisms that can rotate independently in both forward and reverse directions, creating multi-layered three-dimensional beam effects.  Additionally, it provides multiple speed electronic strobe, linear dimming, and rainbow effect, meeting diverse scene requirements.

380W beam light is suitable for small to medium-sized performances,bars,clubs,banquet halls,and other venues, creating intense visual impact and dynamic lighting atmospheres.

Technical parameters


Light Source System

  • Light source specification:OSRAM 371W lamp
  • Light source color temperature: 7764K
  • Light source life: 1500 hours

Optical System

  • Lens diameter:160mm
  • Lux:193000 Lux@15m

Color System

  • Super cool rainbow effect
  • 1 Independent Color Wheel with 14 Colors, featuring step and linear color-changing modes

Gobo system

  • Fixed gobo wheel: 17 fixed gobos+white, which can change speed and shake

Effect

  • Prism: 8 facet prisms and 24 facet prisms, can rotate independently in both directions
  • Dimming: 0-100% linear adjustment
  • Strobe: multiple speed electronic strobe effects
  • Frost: 1 independent frost , 0-100% frost, natural and soft light spot

Pan&Tilt

  • Pan/Tilt Movement:540°/270°
  • Automatically return to its original position and perform 16-bit precision fine-tuning
  • Pan and Tilt adopt a precise photoelectric coupling positioning system

Electrical & Interface

  • Input voltage: AC100V-240V, 50/60Hz
  • Rated power: 500W
  • Ballast:Electronic Inductive Ballast
  • Signal interface: 3-coreXLR signal input/output

Control & Programming

  • Channel mode: 16CH
  • Control protocol: standard DMX512/RDM protocol
  • Display mode: 1.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
  • Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
  • Software upgrade: software can be upgraded via DMX signal cable
  • Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Fixture Structure

  • Product appearance: nylon flame-retardant, heat-resistant
  • Working environment: -20 ° C to 40 ° C
  • Protection level: IP20

Size & weight

  • Product size: 33*27*57cm (L*W*H)
  • Net weight: 16.5kg
