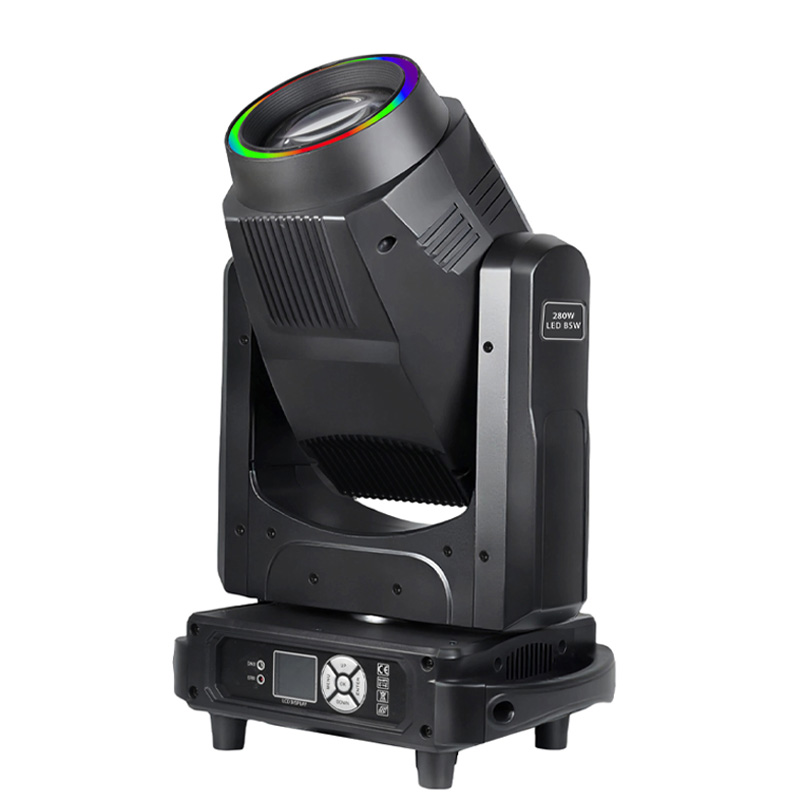

280W LED BSW Moving head light with strip

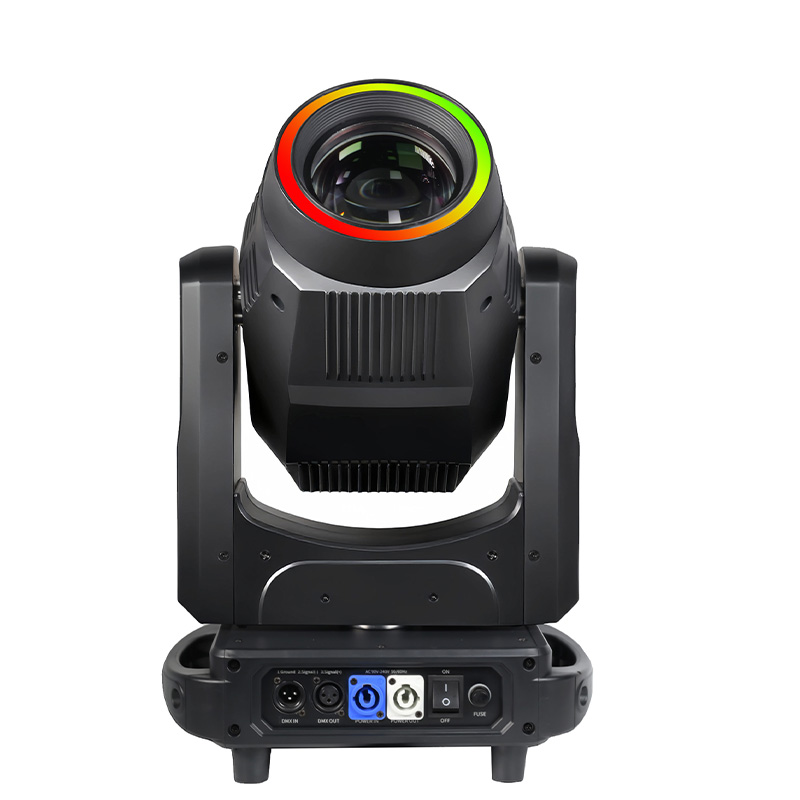

Mini 280W LED Beam Wash Spot Moving Head Light with 24 auxiliary lights Strip

280W LED BSW Moving head light with 24 auxiliary lights Strip

280W LED Strip 3in1 BSW Moving Head,14 color paired with linear CTO color temperature correction deliver rich colors; 7 pluggable rotation gobos and 5 fixed gobos offer abundant graphic options

  • Brand model :

    QR-LM280
  • Input voltage :

    AC100V-240V, 50/60Hz
  • Light source :

    280W LED module
  • Color wheel :

    14+1/CTO
  • Product size :

    30*22*55cm(L*W*H)
  • Net weight :

    14.4kg
  • Protection level :

    IP20
Inquiry Now



Function Description


LED 24 auxiliary lights Strip 3-in-1 Moving Head Light 280W,with an overall color temperature of 8522K and a built-in professional light effect system:14 independent color wheels paired with linear CTO color temperature correction deliver accurate and vivid color reproduction;7 rotation pluggable gobos and 5 fixed gobos offer abundant graphic options;3 prisms, electronic strobe,and an independent frost filter (0–100% adjustable) further enhance beam layers and texture performance.

Crafted with a flame-retardant, high-temperature-resistant nylon housing,the fixture is lightweight yet durable,Net weighing only 14.4kg for easy installation, transportation, and quick deployment.Ideal for small-to-medium events, theaters, studios,weddings,and various mobile performances,it’s a professional lighting choice that balances versatility and cost-effectiveness.

Technical parameters


Light Source System

  • Light source specification: LED 280W module + 24 auxiliary lights
  • Light source color temperature: 8522K
  • Light source life: 20000 hours

Optical System

  • Zoom range: electron linear zoom 2.8-32 degrees
  • Lens diameter:98mm
  • Lux:17400 Lux@10m

Color System

  • Linear CTO color temperature correction (7200-3200K)
  • 1 Independent Color Wheel with 14 Colors, featuring step and linear color-changing modes

Gobo system

  • Rotating gobo wheel: 7 pluggable glass gobos, each gobo can rotate independently in both directions
  • Gobo sheet size: outer diameter 19.8mm±0.2mm, inner diameter 10mm, thickness 1.1mm
  • Fixed gobo wheel:5 fixed gobos+white, which can change speed and shake

Effect

  • Prism: 3 facet prisms, can rotate independently in both directions
  • Dimming: 0-100% linear adjustment
  • Strobe: multiple speed electronic strobe effects
  • Frost: 1 independent frost , 0-100% frost, natural and soft light spot

Pan&Tilt

  • Pan/Tilt Movement:540°/270°
  • Automatically return to its original position and perform 16-bit precision fine-tuning
  • Pan and Tilt adopt a precise photoelectric coupling positioning system

Electrical and Interface

  • Input voltage: AC100V-240V, 50/60Hz
  • Rated power: 320W
  • Signal interface: 3-core XLR signal input/output

Control and Programming

  • Channel mode: 19/23CH
  • Control protocol: standard DMX512/RDM protocol
  • Display mode: 1.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
  • Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
  • Software upgrade: software can be upgraded via DMX signal cable
  • Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Light body structure

  • Product appearance: nylon flame-retardant, heat-resistant
  • Working environment: -20 °C to 40 ° C
  • Protection level: IP20

Size and weight

  • Product size: 30*22*55cm (L*W*H)
  • Net weight: 14.4kg
