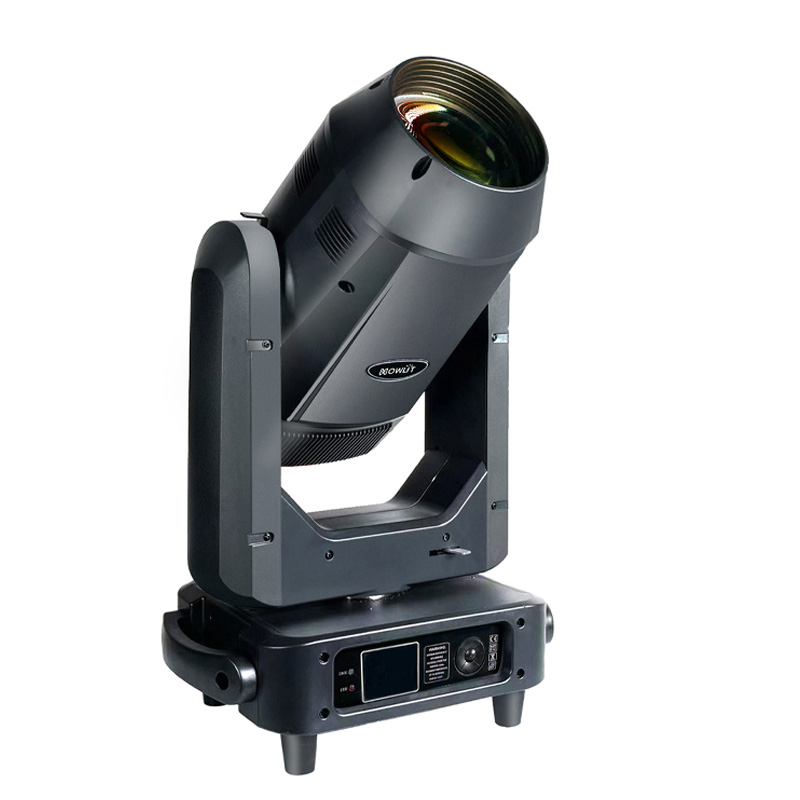

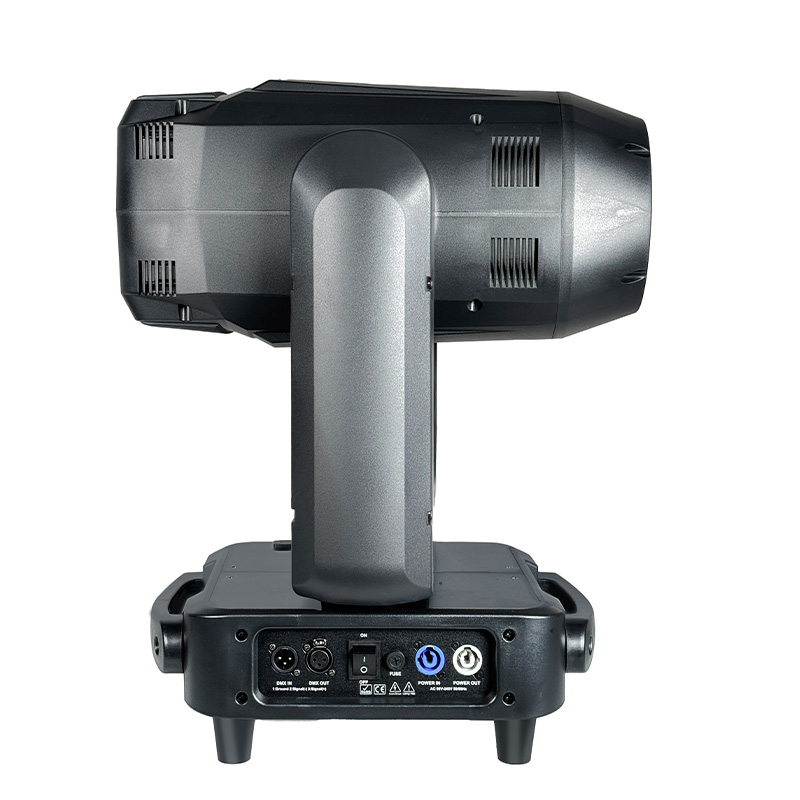

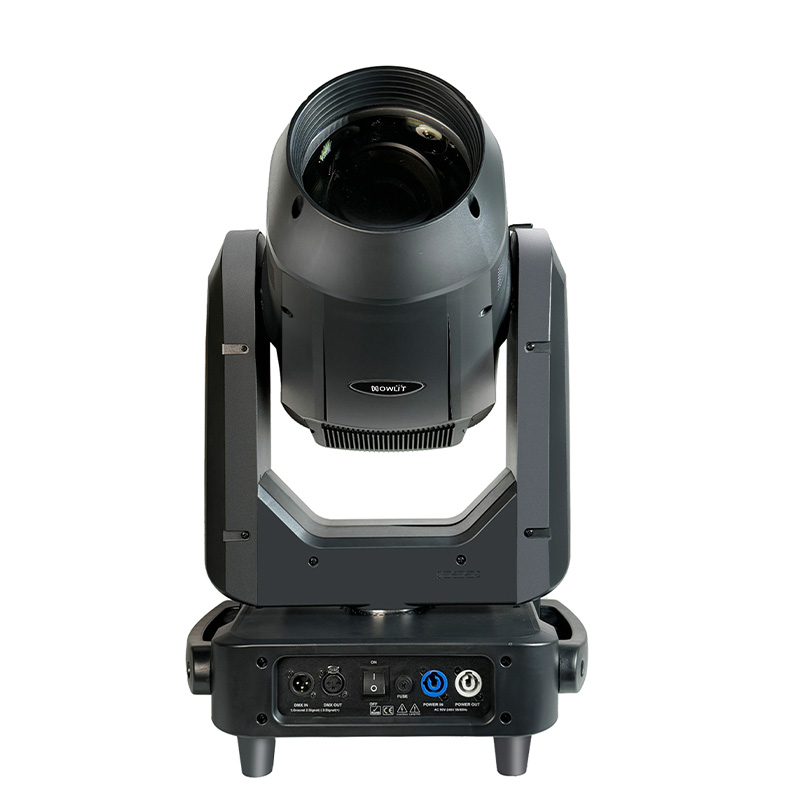

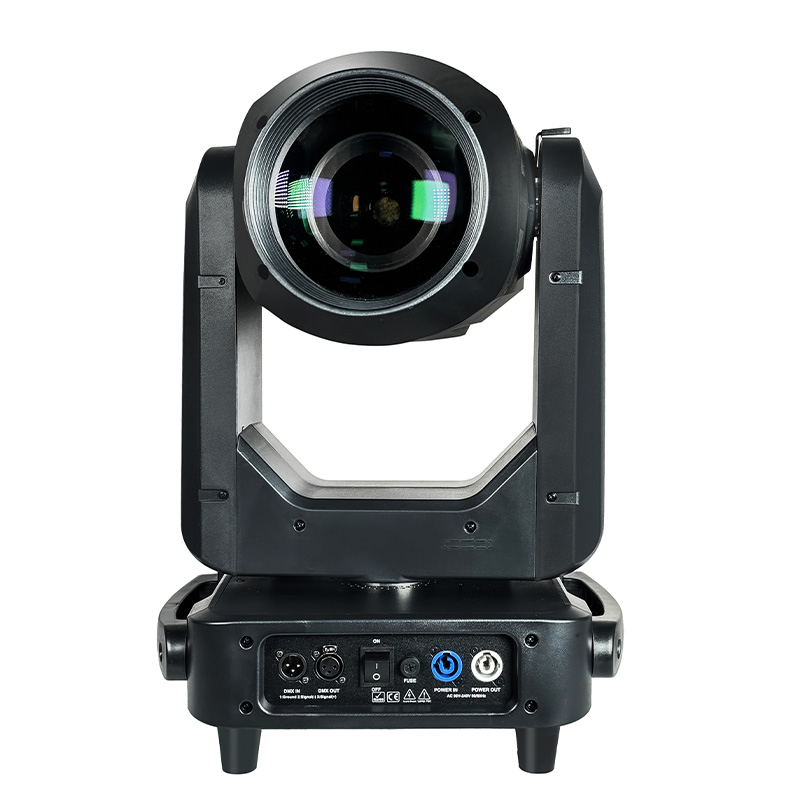

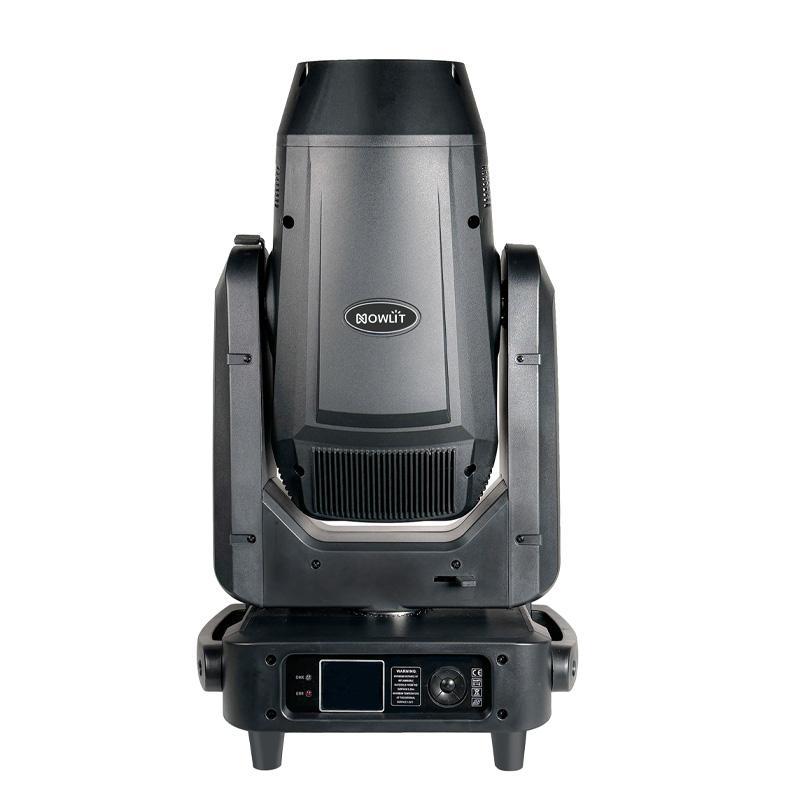

480W Hybrid LED 3IN1 BSW Moving head light

Light Source System

• Light source specification: 480W LED module
• Light source color temperature: 8100K
• Light source life: 20000 hours

Optical System

• Zoom range: electron linear zoom 3.5-50 degrees
• Lens diameter：138mm
• Lux：29600 Lux@10m

Color System

• Independent CMY color mixing system
• Linear CTO color temperature correction (7400-3200K)
• 1 Independent Color Wheel with 8 Colors, featuring step and linear color-changing modes

Gobo system

• Rotating gobo wheel: 7 pluggable glass gobos, each gobo can rotate independently in both directions
• Gobo sheet size: outer diameter 22.9mm±0.2mm, inner diameter 15mm, thickness 1.1mm
• Fixed gobo wheel: 12 fixed gobos+white, which can change speed and shake

Effect

• Prism: 8 facet prisms and 6 facet prisms, can rotate independently in both directions
• Dimming: 0-100% linear adjustment
• Strobe: multiple speed electronic strobe effects
• Frost: 1 independent frost , 0-100% frost, natural and soft light spot

Pan &Tilt

• Pan/Tilt movement:540°/270°
• Automatically return to its original position and perform 16-bit precision fine-tuning
• Pan and Tilt adopt a precise photoelectric coupling positioning system

Electrical & Interface

Input voltage: AC100V-240V, 50/60Hz

Rated power: 600W

Signal interface: 3-coreXLR signal input/output

Control & Programming

• Control and Programming
• Channel mode: 23/25CH
• Control protocol: standard DMX512/RDM protocol
• Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
• Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
• Software upgrade: software can be upgraded via DMX signal cable
• Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Fixture Structure

• Product appearance: nylon flame-retardant, heat-resistant
• Working environment: -20 ° C to 40 ° C
• Protection level: IP20

Size & Weight

• Product size: 38*27*67cm (L*W*H)
• Net weight: 23kg
