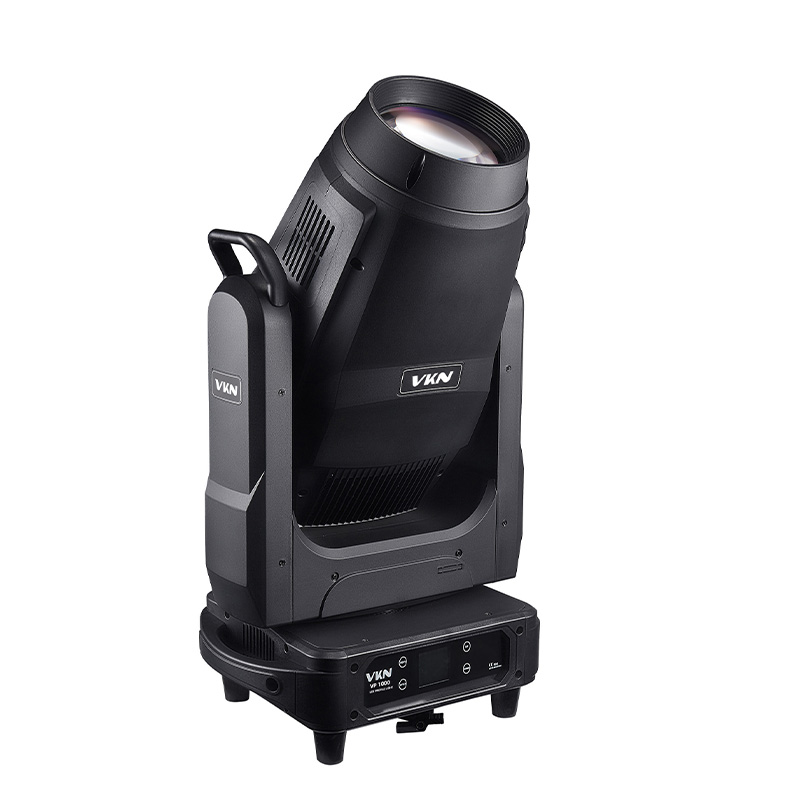

VP1000 1000W LED 4in1 Moving Head Profile Light

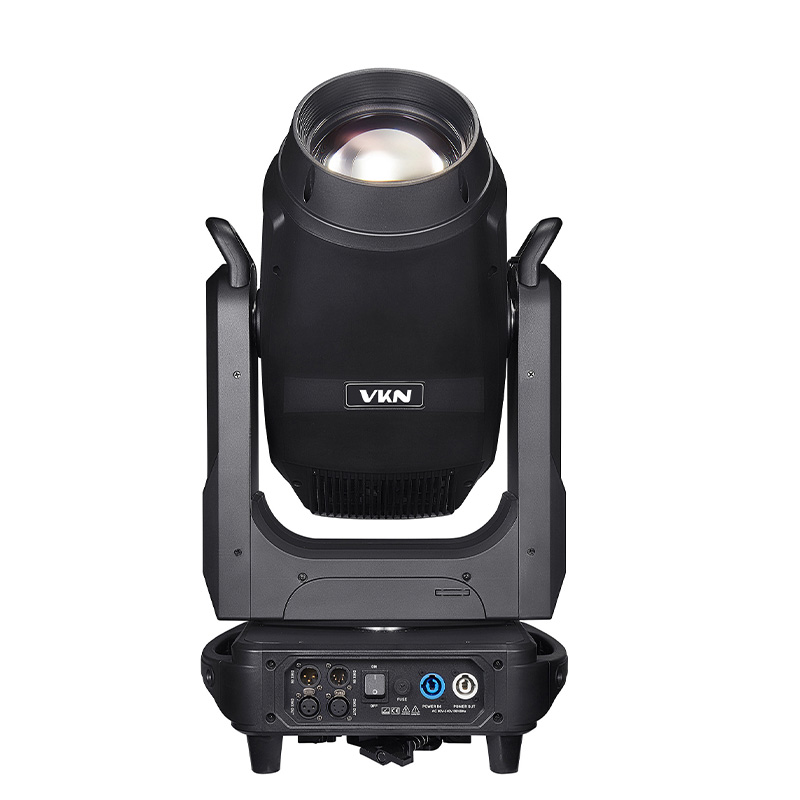

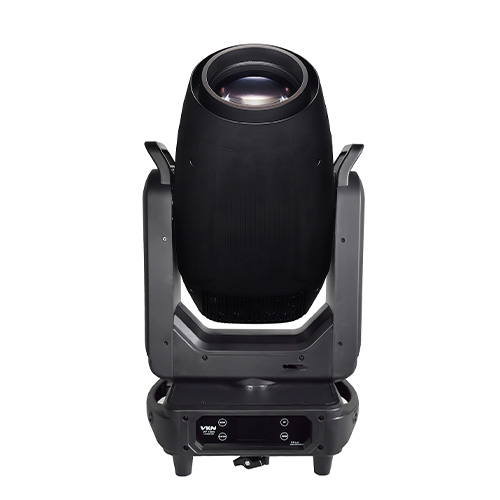

VP1000 professional stage moving head fixture - front vertical view

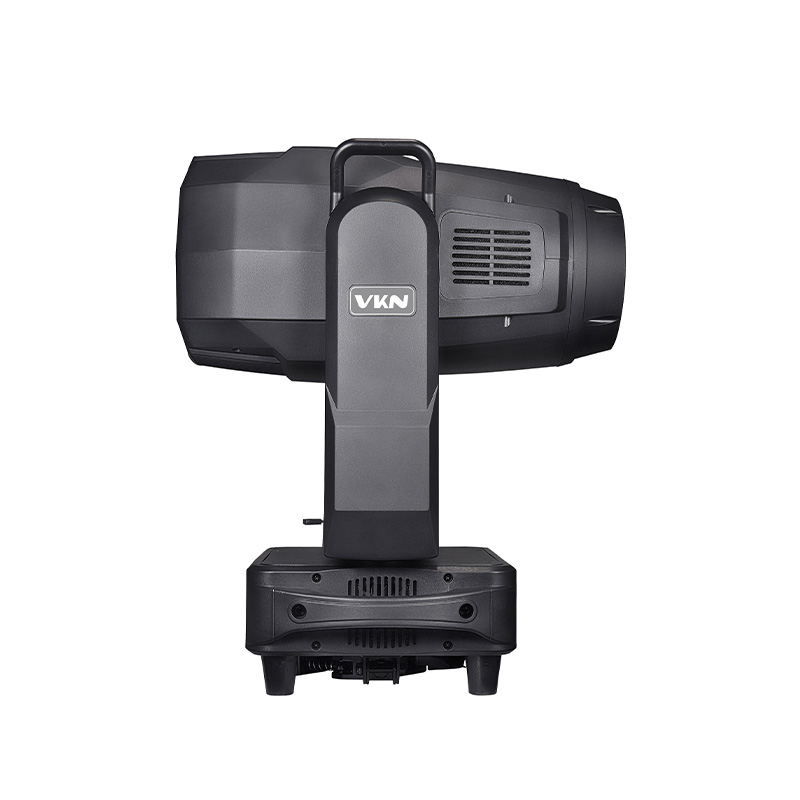

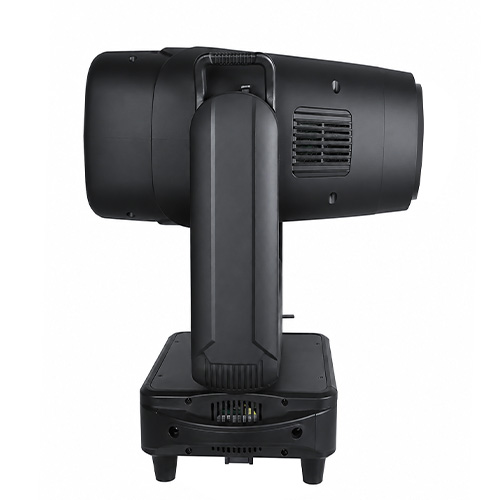

VP1000 theatre LED moving head spot - horizontal head tilt position

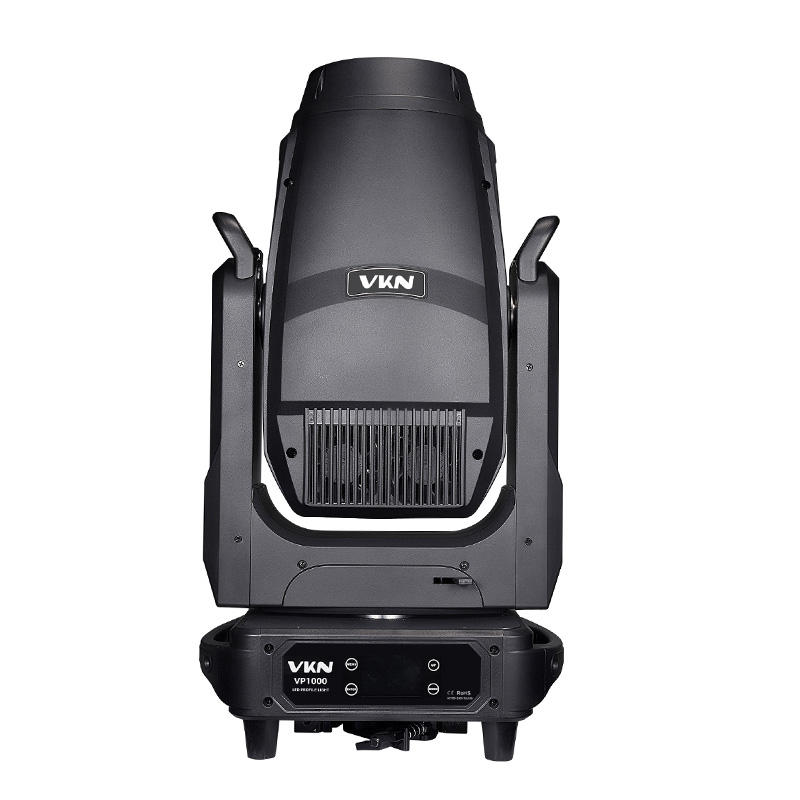

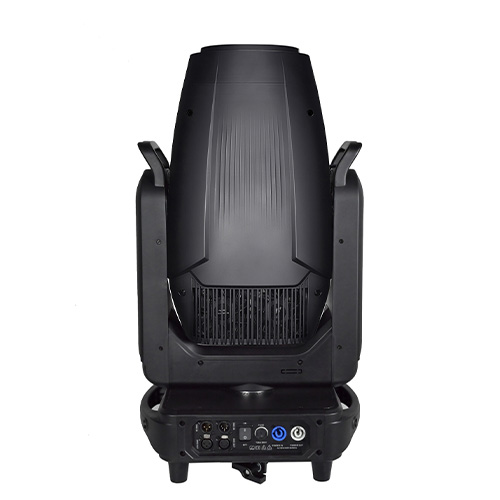

VP1000 concert stage lighting moving head - product design and overview

VP1000 1000W LED 4in1 Moving Head Profile Light

VKN VP1000 LED 4-in-1 Profile: 3.5-45° zoom, 120° shutter, CMY+CTO, dual prisms & gobos. Ideal for professional concerts, theaters, and broadcast studios.

Modelo de marca :
VP1000
Tensão de entrada :
AC100V–240V, 50/60Hz
Fonte de luz :
800W LED module
CRI :
Standard mode Ra > 70 / High CRI mode Ra > 90 (switchable)
Roda de cores :
7 colors + open white
Tamanho do produto :
38*26.9*68.4 cm
Peso líquido :
27.5 kg
Nível de proteção :
IP20
Modo de canal :
39/41CH

FAÇA SUA CONSULTA AGORA

Function Description

VKN VP1000 LED 4-in-1 Moving Head Profile empowered by a high-brightness LED engine and premium optics, the VKN VP1000 delivers powerful beams, smooth washes, and razor-sharp framing. It features a versatile 3.5 to 45 degree motorized zoom, a plus/minus 120 degree rotatable 4-blade shutter system, CMY+CTO color mixing, and rich dynamic effects (dual prisms, animation wheel, and sharp gobos). Backed by an efficient cooling system for ultimate stability, this profile is the perfect choice for professional concerts, theaters, and broadcast studios.

Technical parameters

Light Source System

Light source: 800W LED module
LED lifetime: >20,000 hours
CRI: Standard mode Ra > 70 / High CRI mode Ra > 90 (switchable)

Optical System

Zoom range: 3.5°–45° linear high-speed zoom
Output lens diameter: 136 mm
Illuminance: 147,000 Lux @ 5m

Color System

CMY infinite color mixing system
Linear CTO color temperature correction (7300K–2600K)
Color wheel: 1 independent color wheel 7 colors + open white
Stepped and linear color change modes, adjustable rainbow effect

Gobo system

Rotating gobo wheel: 7 interchangeable rotating glass gobos, each with independent bi-directional rotation
Fixed gobo wheel: 11 metal gobos + open, with variable-speed shake effect

Cutting System

4 independently controllable framing blades, allowing precise beam shaping and geometric pattern creation, ±120° rotation

Effect

Animation wheel: Independent animation wheel with dynamic flame, flowing water, and other motion effects simulation
Prism system: 1 × 4-facet prism and 1 × 4-facet linear prism, independently bi-directional rotation
Dimmer: 0–100% smooth linear dimming
Strobe: Electronic strobe with variable speed effects
Frost filter: 1 independent frost filter for smooth and soft beam output
Motorized iris: 5–100% fast linear adjustment

Pan &Tilt

Pan 540°, Tilt 270°, auto return, 32-bit fine adjustment, with magnetic encoder system for precise positioning

Electrical & Interface

Input voltage: AC100V–240V, 50/60Hz
Rated power: 950W
Signal interface: 3-pin & 5-pin XLR signal input/output
Fuse: 250V 20A

Control & Programming

Control channels: 39/41CH
Control protocol: DMX512 / RDM, optional NFC and Art-Net
Display: 2.4-inch touchscreen display with Chinese & English bilingual operating system, reversible 180° display
Energy saving sleep mode: Automatically enters sleep mode when signal is disconnected
Software upgrade: Firmware upgrade via DMX signal cable
Cooling system: High-efficiency copper heat pipe cooling system, intelligent variable-speed fan, built-in temperature sensor with automatic thermal regulation
