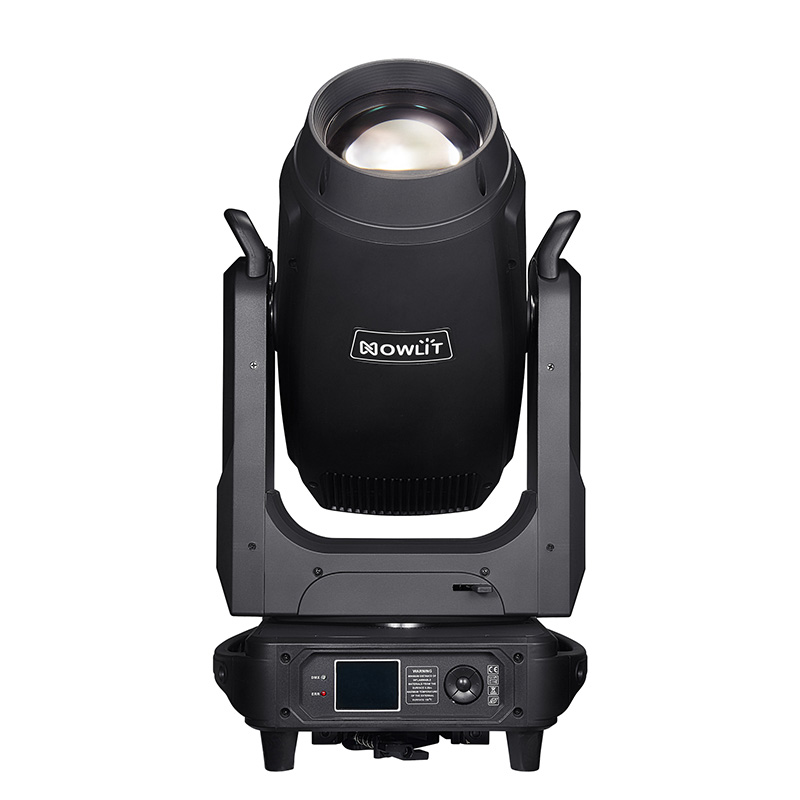

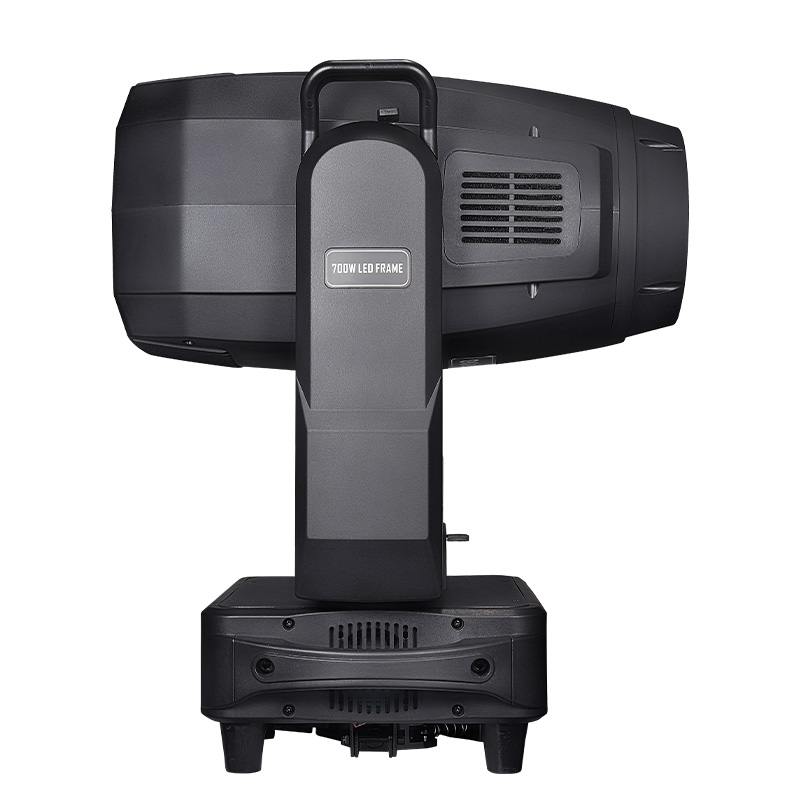

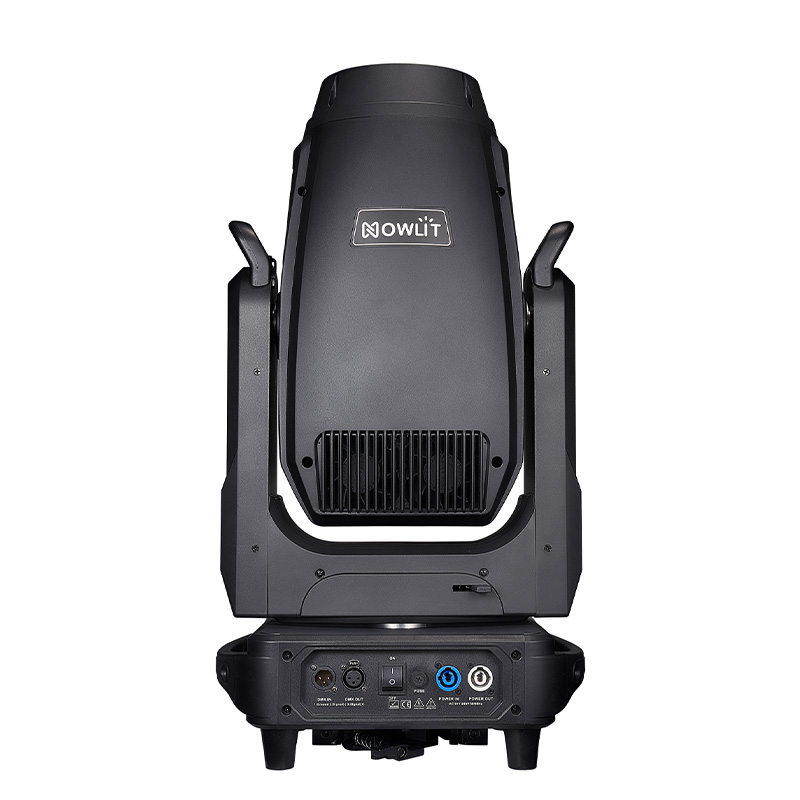

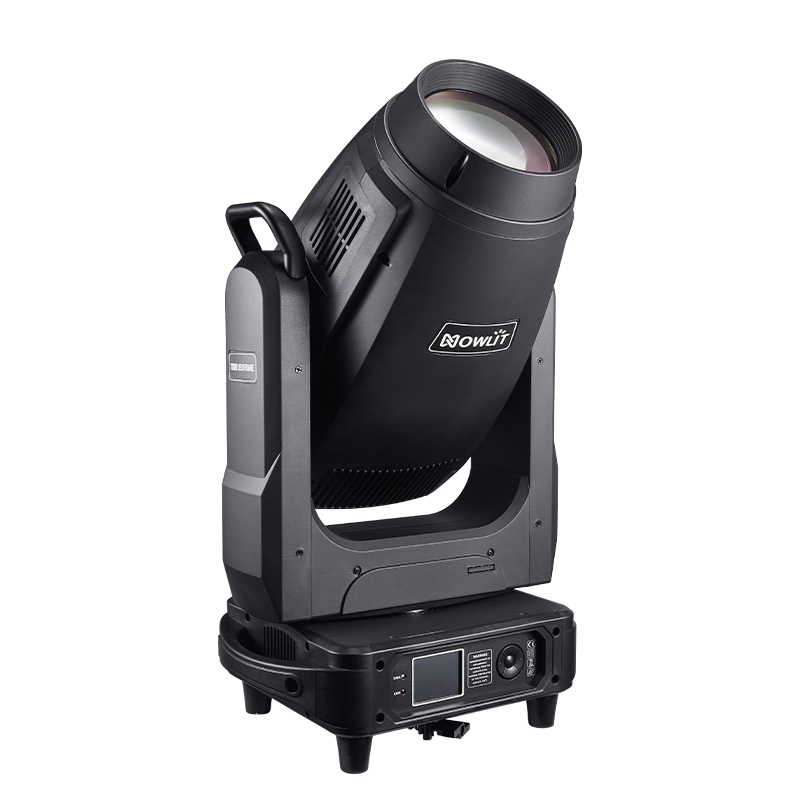

700W LED BSWF Profile Compact Moving Head Light | CMY & CTO

Light Source System

• Light source specification: 600W LED module
• Light source color temperature: 7061K
• Light source life: 20000 hours
• CRI: standard mode Ra >70, high display mode >90 (switchable)

Optical System

• Zoom range: electron linear zoom 5-50 degrees
• Lens diameter：138mm
• Total lumen output of fixture: 31000 lumens
• Lux：32200 Lux@10m

Color System

• Independent CMY color mixing system
• Linear CTO color temperature correction
• 1 Independent Color Wheel with 6 Colors, featuring step and linear color-changing modes

Gobo system

• Rotating gobo wheel: 7 pluggable glass gobos, each gobo can rotate independently in both directions
• Gobo sheet size: outer diameter 22.9mm±0.2mm, inner diameter 15mm, thickness 1.1mm
• Fixed gobo wheel: 4 fixed gobos+white, which can change speed and shake

Cutting system

• 4 independent cutting blades, each can be controlled individually to produce geometric shapes of different sizes and forms, and capable of 90°rotation

Effect

• Dynamic effect wheel: super cool simulation of dynamic and moving flames, gurgling water and other dynamic effects
• Prism: 3 facet prisms, can rotate independently in both directions
• Dimming: 0-100% linear adjustment
• Strobe: multiple speed electronic strobe effects
• Frost: 1 independent frost , 0-100% frost, natural and soft light spot
• Electric aperture: 5-100% rapid linear adjustment

Pan & Tilt

• Pan/Tilt movement:540°/270°
• Automatically return to its original position and perform 16-bit precision fine-tuning
• A magnetic encoder positioning system is adopted

Electrical & Interface

• Input voltage: AC100V-240V, 50/60Hz
• Rated power: 730W
• Channel mode: 39CH
• Signal interface: 3-coreXLR signal input/output

Control & Programming

• Control protocol: standard DMX512/RDM protocol
• Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
• Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
• Software upgrade: software can be upgraded via DMX signal cable
• Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Fixture Structure

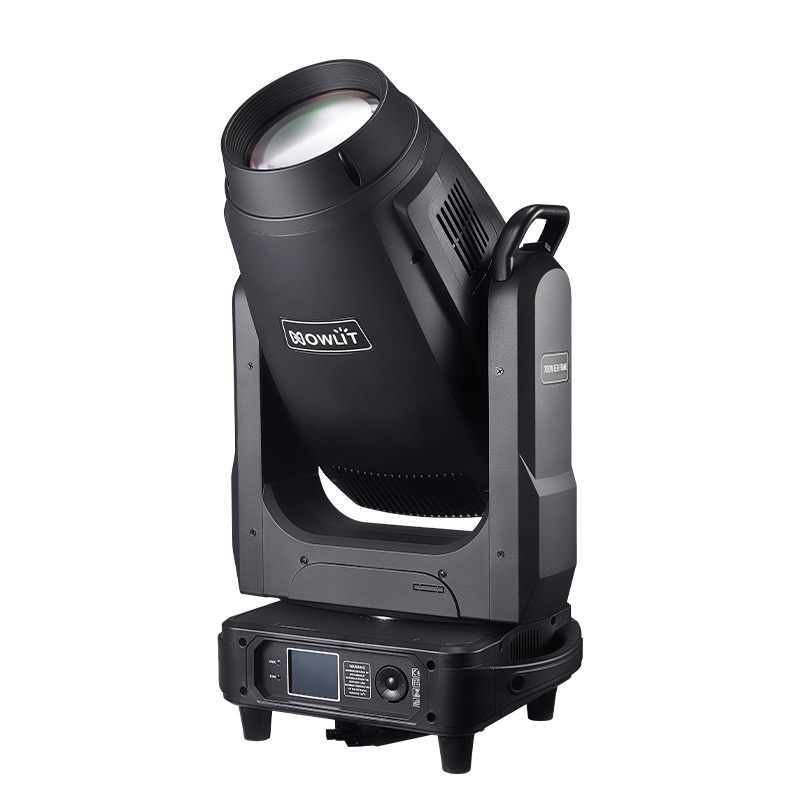

• Product appearance: nylon flame-retardant, heat-resistant, with folding clamps
• Working environment: -20 ° C to 40 ° C
• Protection level: IP20

Size & Weight

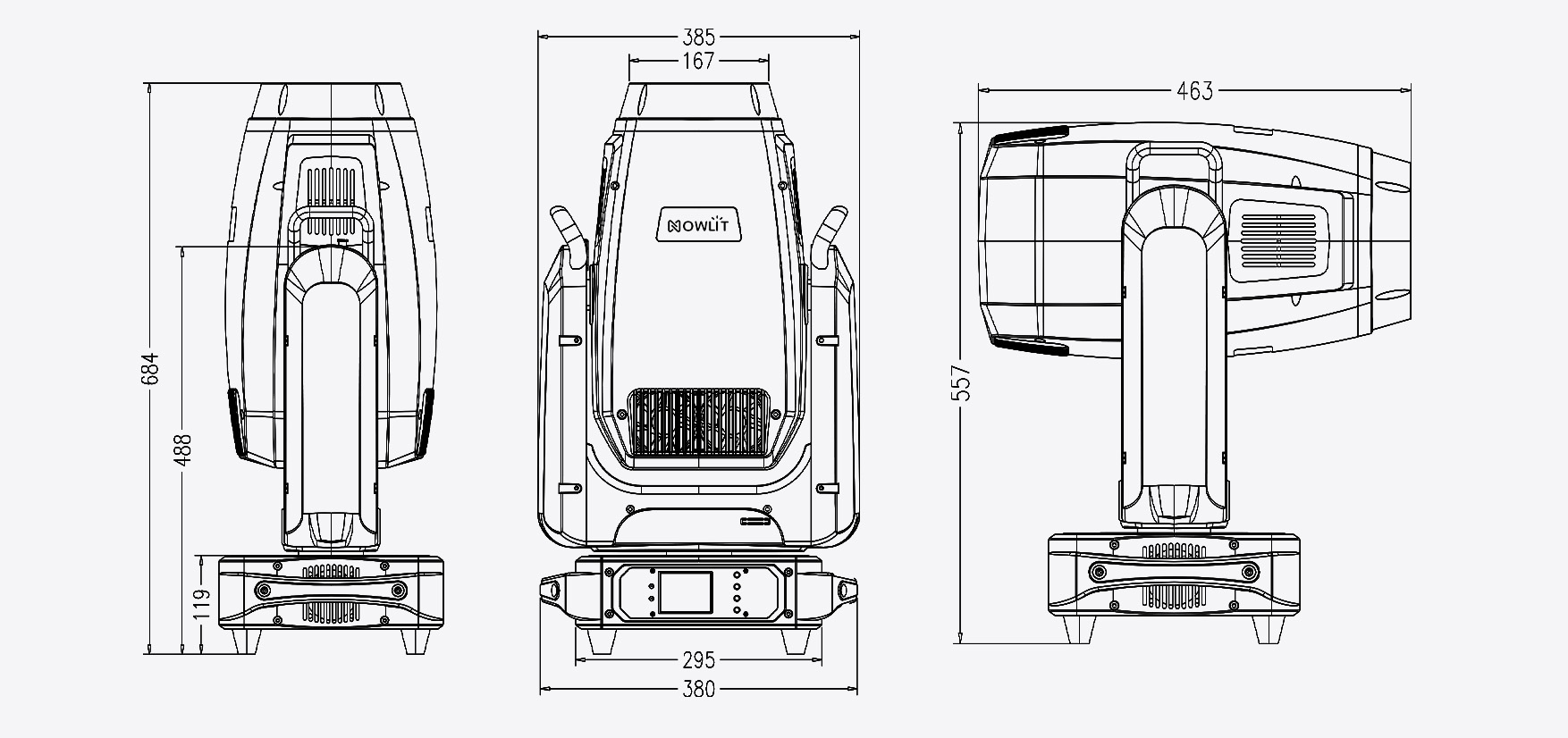

• Product size: 38*26.9*68.4cm (L*W*H)
• Net weight: 27.5kg
