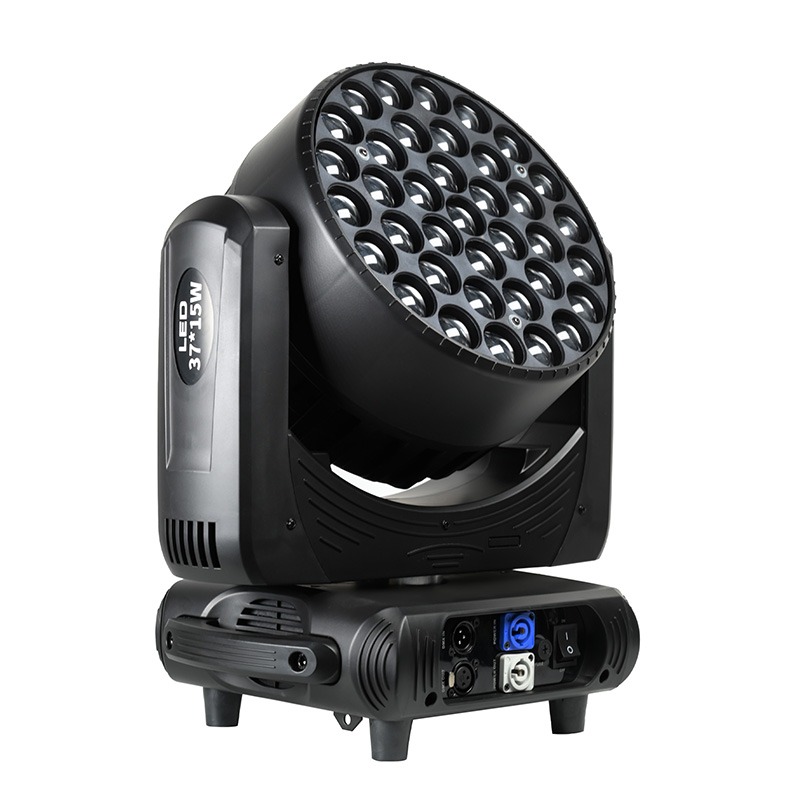

37x15W High-Power RGBW LED

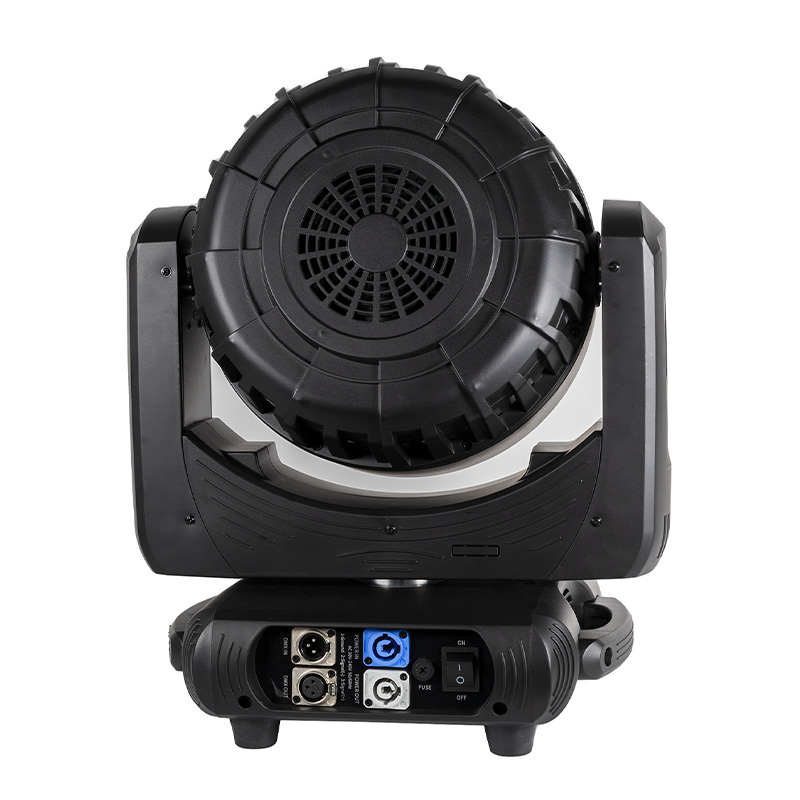

Mini moving head light for stage and event lighting
Compact, high-output moving head light

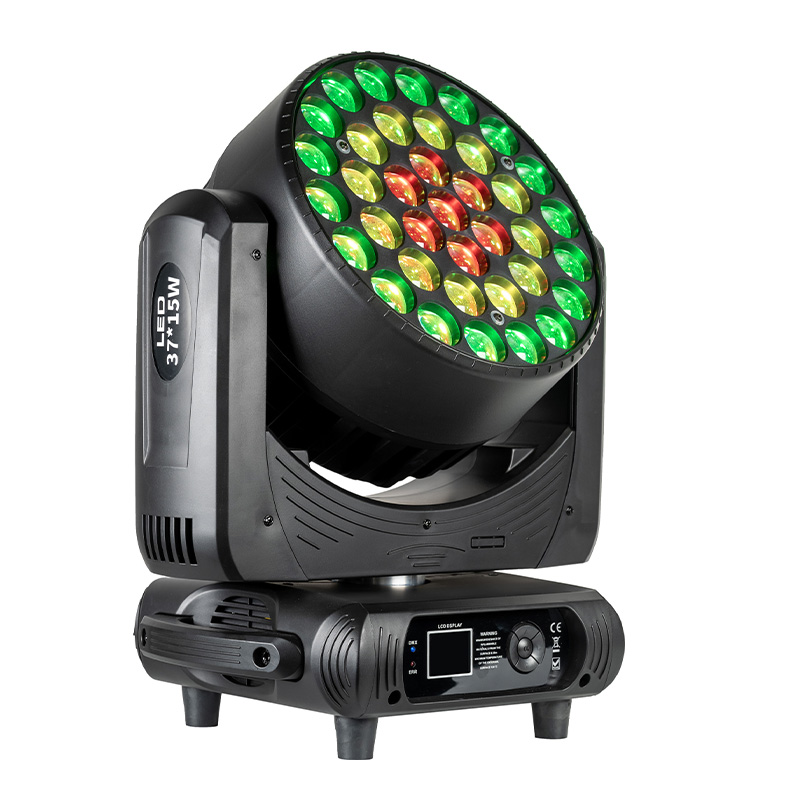

Professional Moving Head Wash Light with 37x15W RGBW LED

37pcs15W Zoom Wash Moving Head Light

37x15W Moving Head Wash Light is a professional high-power dual-effect light,It features a 360°continuously rotating optical lens,capable of producing rich dynamic lighting effects.

  • Brand model :

    QR-M3715
  • Input voltage :

    AC100V-240V, 50/60Hz
  • Light source :

    37x15W RGBW LED
  • Product size :

    40*27*47cm
  • Net weight :

    14.5kg
  • Protection level :

    IP20
  • Channel mode :

    22CH/50CH
Inquiry Now



Function Description


37x15W Moving Head Wash Light is a professional high-power dual-effect luminaire that combines beam and wash functionalities.It features a 360°continuously rotating optical lens,capable of producing rich dynamic lighting effects such as kaleidoscope and waist-beam patterns.It also supports independent color mixing for both inner and outer rings,along with a 5°-40°zoom range,making it adaptable to various lighting demands regardless of distance.

QR-M3715 is suitable for a wide range of professional applications,including environmental washing and special effect rendering for stage performances and wedding banquets,dynamic beam shaping in clubs and Livehouses,as well as auxiliary lighting and color enhancement in theaters and TV studios.Its compact design, efficient heat dissipation,and sturdy flame-retardant construction also make it a cost-effective solution for both fixed installations and touring applications

Technical parameters


Light Source System

  • Light Source specification: 37x15W RGBW LED
  • Light Source Life: >20,000 hours

Optical System

  • Beam Range: 5-40°

Color System

  • Fast Electronic Strobe: 1 ~ 25 Hz
  • Dimming: 0-100% Linear Dimming
  • Color Temperature Control: Built-in CTO (Color Temperature Orange)
  • Lens Rotation: 360° Infinite Rotation of Optical Lens, creating variable Kaleidoscope, Waist-like effects, etc.
  • Single Ring Control: The light source supports independent color change control for inner and outer rings

Electrical & Interface

  • Rated Power: 500W
  • Input Voltage: AC100V-240V 50/60Hz
  • Data Connection: 3-pin XLR input/output

Control & Programming

  • Control Channels: 22CH/50CH
  • Protocol: Standard DMX512 Protocol, RDM Protocol
  • Software update via DMX signal for quick and easy upgrades
  • Silent Fan with Intelligent Speed Regulation
  • Intelligent Temperature Protection to ensure LED lifespan

Pan&Tilt

  • Pan/Tilt Movement: 540°/270°, with automatic return and 16-bit precision adjustment
  • Pan and Tilt positioning with precise opto-coupler system

Fixture Structure

  • Flame-retardant Engineering Plastic Housing
  • Fan Cooling
  • Protection level: IP20
  • Working Environment: -20℃ to 45℃

Size and weight

  • Product Size: 40*27*47cm
  • Net Weight: 14.5kg
